CUM3k skiving machine cum to work heavy material with double feed roll knife motor with inverse rotation and variable speed



CUM3K

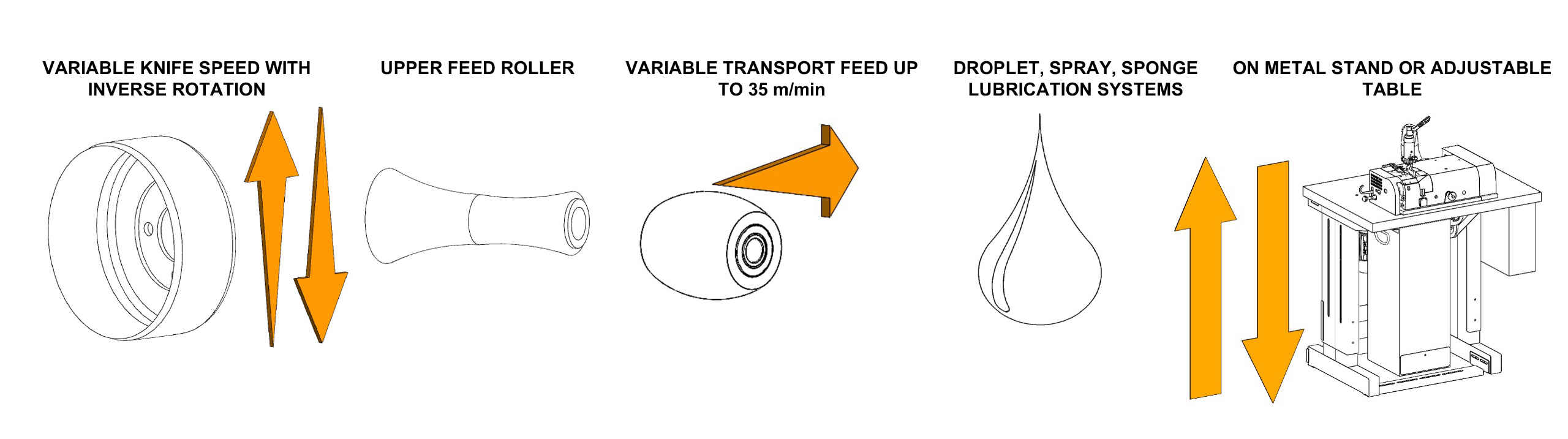

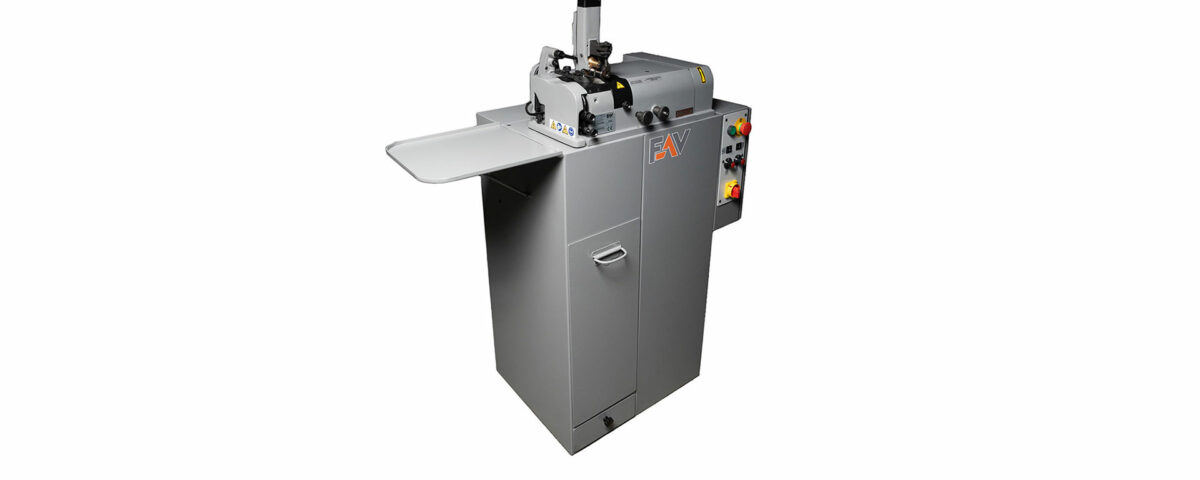

On metal stand, electronic knife and feeding speed control.

All the models are also available on table version, with or without suction.

Technical data

Skiving width up to: 50 mm
Skiving angle: 0°- 45°
Skiving thickness up to: 7 mm
Noise emission: 70 dB (A)
Feed speed up to: 40 m/min
Knife speed: 720 RPM

Optional

- Lubrication system device available in 3 different solution at customer choice: drop system , spray sytem and box sponge system
- Thickness gauge
- Work lamp
- Various feed rolls and pressure rolls available
- External suction can be added on the machines
