AV2MAE

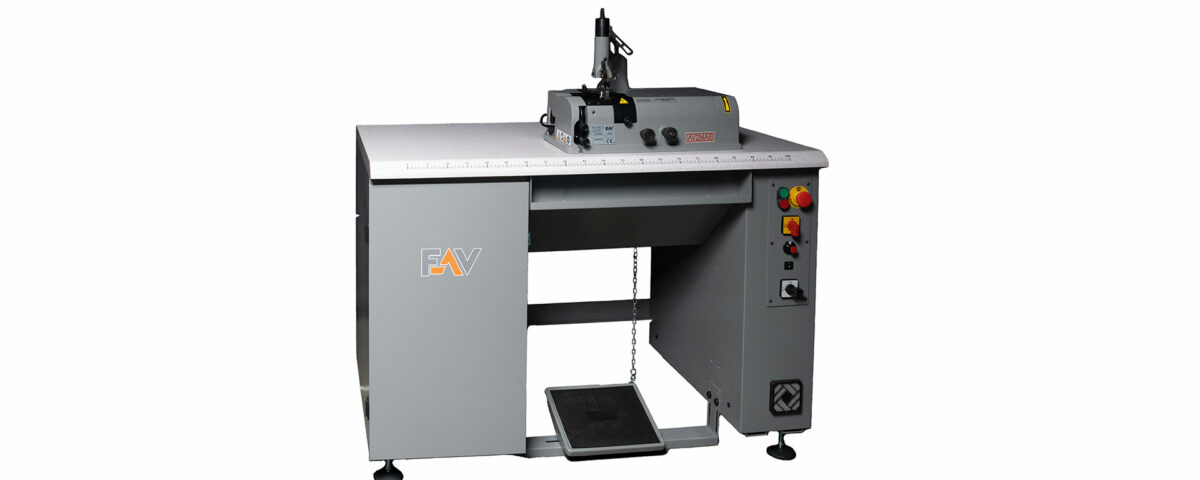

The AV2 MAE skiving machine has adjustable feed speed that allows to skive various materials with different and difficult outline.
The electronic variable speed helps the operator and avoid production material waste. Machine is availble on adjustable height table or fixed table.

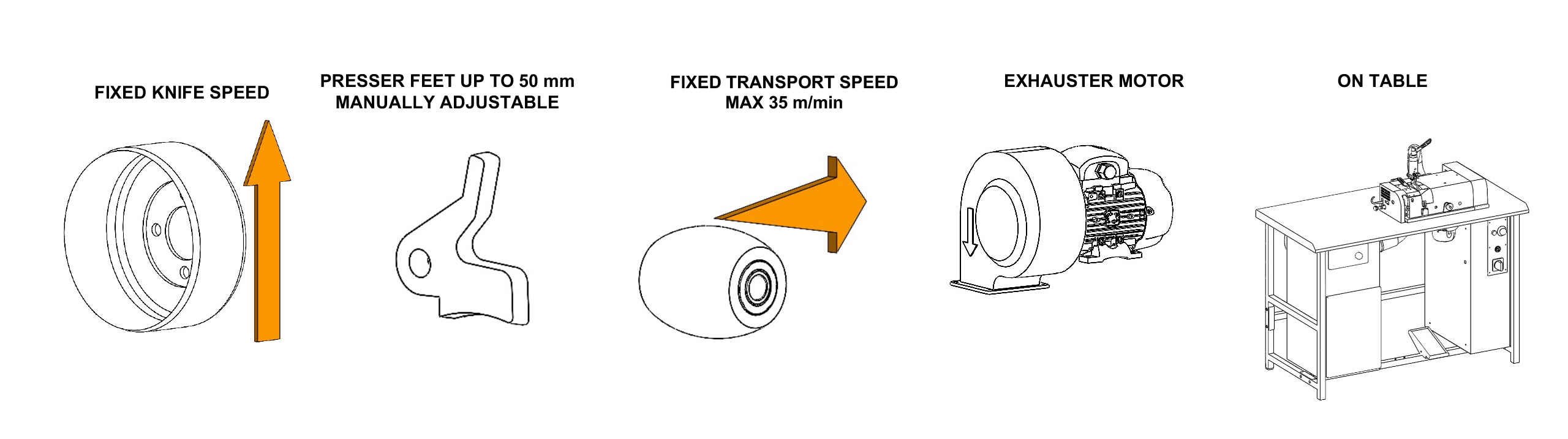

Technical data

Skiving width up to: 50 mm
Skiving angle: 0°-45°
Skiving thickness up to: 3 mm
Noise emission: 70 dB (A)
Feed speed up to: 35 m/min
Knife speed: 1870 RPM
Electrical power supply: 1.00 kW
Dimensions: 120 x 60 x 124h cm
Wooden case packing dimensions: 130 x 70 x 144h cm
Pallet packing dimensions: 120 x 80 x 140h cm
Net weight: 115 kg
